Mixtile Edge 2
Ready-to-use Single Board Computer
Customizable with various interfaces
High performance and low-power ARM processor
Mixtile Edge 2 is a high-performance, low-power ARM SBC (Single Board Computer) that supports Android 11 and Linux operating systems. Featuring multiple network connections of Wi-Fi 6, Bluetooth 5.0, Cellular, LoRa, Zigbee and others, it also reserves peripheral ports including M.2, mini-PCIe, RS-485, CAN and UART. Application customization is available according to user needs, meeting multiple application scenarios in IoT gateways, commercial display scenarios, intelligent vending machines, industrial control, etc.
Versatile Network Connectivity
With on-board Wi-Fi 6 (802.11ax), dual-mode Bluetooth 5.0, M.2 interfaces and mini-PCIe interfaces for expansion of Cellular, LoRa and Zigbee modules, Edge 2 supports multiple network connections.
High-scalability with Rich Interfaces

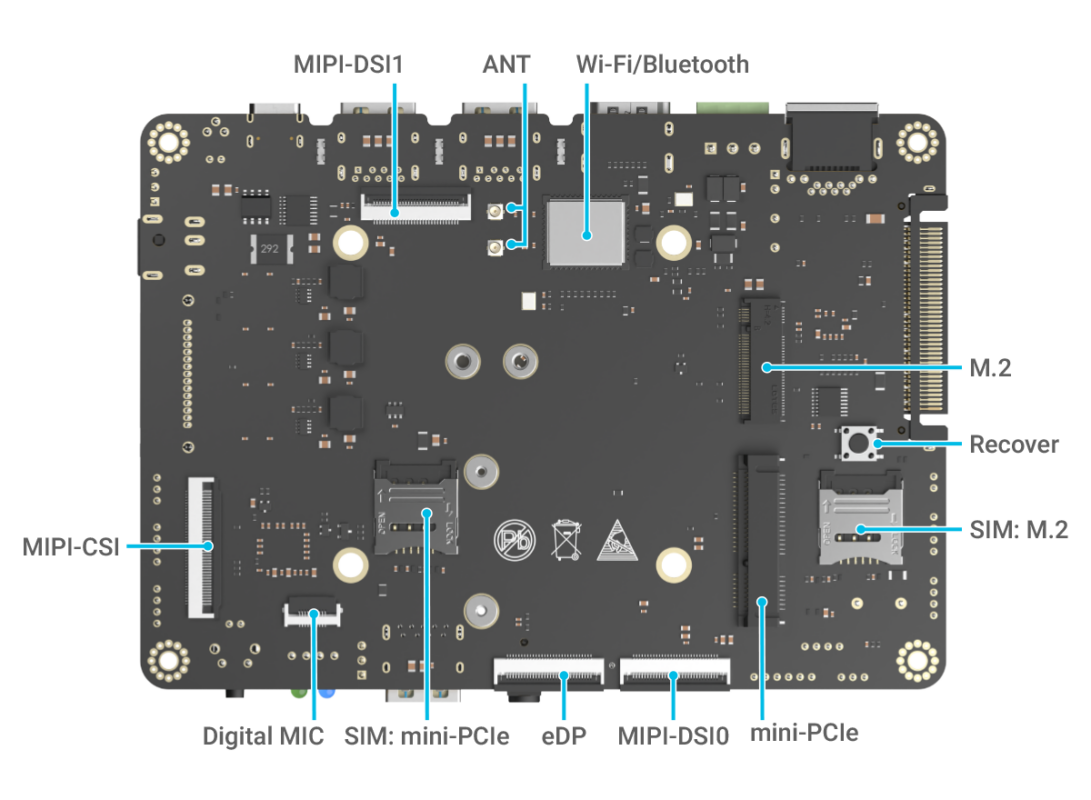

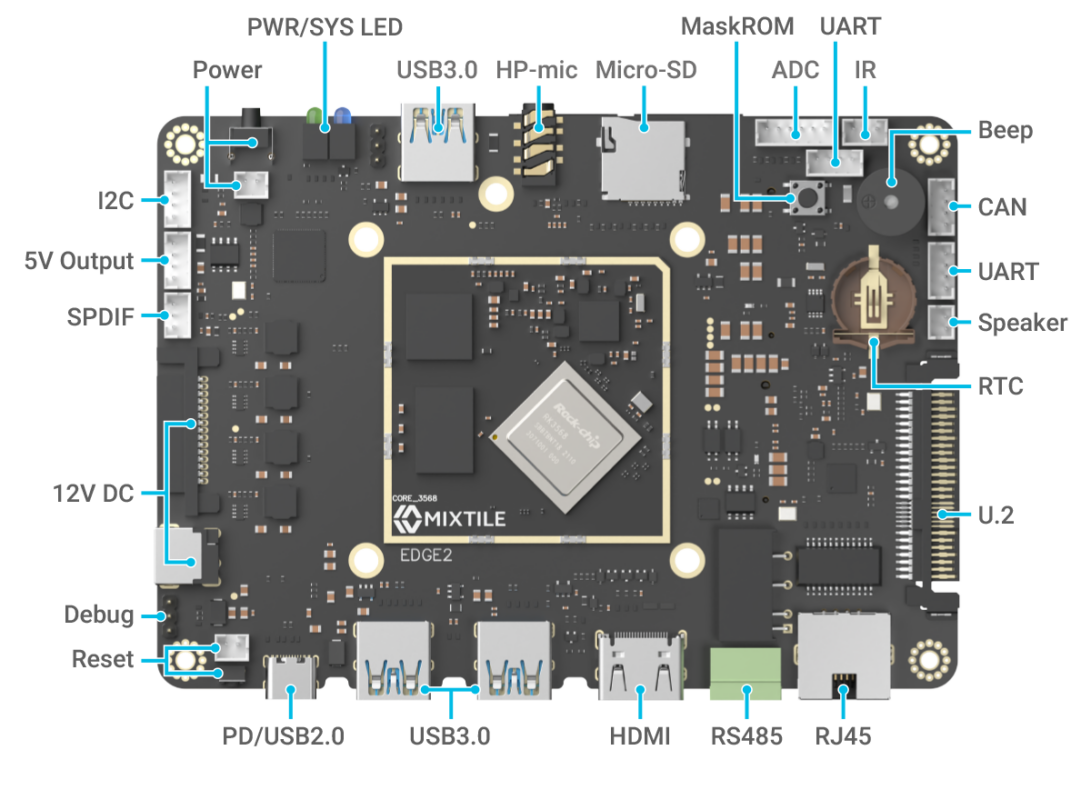

Mixtile Edge 2 reserves peripheral ports including M.2, mini-PCIe, RS-485, CAN and UART to expand modules and customize various industrial solutions at a lower cost.
It also provides RS-485 interface to meet the expansion needs of various industrial equipment.
The M.2 socket on the Mixtile Edge 2 Kit for expanding 4G/5G cellular modules uses “B-key” edge connector, which differs from the common “M-key”.
Quad-core ARM Cortex-A55
Mixtile Edge 2 features Quad-core ARM Cortex-A55 up to 2.0GHz and supports LPDDR4 up to 8GB. It adopts the SoC of RK3568 with integrated high-performance NPU, ideal for deep learning frameworks of TensorFlow, Caffe, Tflite, Pytorch, Onnx NN, Android NN, etc.
In addition to a long life cycle of 10 to 15 years, it could provide industrial-grade option with long and
stable operation between -40°C and 85°C.
Multiple Display Interfaces
With 2xMIPI-DSI, high-definition multimedia interface, and eDP video interfaces, it supports up to three screen output with different displays, which is ideal for NVRs and commercial display equipment.
High-definition Audio Codec
Mixtile Edge 2 supports noise suppression and echo elimination, delivering clearer speech function.
Before Audio Processing
noise & echo
After Audio Processing
noise suppression & echo cancellation
Reliable and Stable with Patented Design
Edge 2 contains the System on Module Core 3568 by Mixtile. Compared with edge connector, Core 3568 has better dustproof and shock resistance with patented design.
Mixtile innovated a reliable solution that contains 536 Pinouts in a 5×5cm package, providing users with an easy and stable soldering method while reducing costs.
Application Customization
It offers application customization and integration services according to customer needs. Complete resources including SDK, development documents, technical documents and tutorials will be provided.
SDK
Development Documents
Technical Documents
Tutorials
Widely Application Scenarios
Combining off-the-shelf functionality with leading commercial processors delivers performance, scalability, and interoperability for various application scenarios.
Industrial IoT Gateway
Equipped with RS-485 and CAN interface and cellular module expansion, Edge 2 features data collection and edge computing functionality, meeting Industrial needs.
Smart Home
Support the installation of Home Assistant to realize automatic lighting adjustment, humidity detection, security system control, etc. It is suitable for shops, offices and hotels.
Commercial Displays
Edge 2 can be widely used in display devices in hospitals, elevators, transportation, shopping malls and hotels.
Intelligent Vending Machines
Preload Android 11 and Linux container, user can deploy Linux applications seamlessly on Android, making Edge 2 perfect for intelligent vending machines integrating control, communication and display functions.
Industrial Control
Edge 2 is an excellent platform to run IoT software systems, e.g., ioBroker, Node-RED, openHAB, etc. Thanks to its rich built-in interfaces, Edge 2 can be assembled as monolithic hardware, while most other SBCs bring wires and chaos.
AI Application
Computational extensive applications including facial recognition, object detection and natural language processing can be deployed on Edge 2 for efficient processing.
In the Press
Technical Specifications
Technical Details
- CPU: Rockchip Quad-core Cortex-A55 SoC Processor RK3568
- NPU: 1 Tops
- Memory: 2/4GB LPDDR4 DRAM Memory and 16/32GB eMMC
- Compatible with High-Definition Multimedia Interface / eDP / MIPI-DSI + TP / MIPI-DSI / MIPI-CSI
- Video encoder: 1080P@60fps H.264/H.265 video encoder
- Video decoder: 4K@60fps H.265/H.264/VP9 video decoder
- Storage expansion: Micro-SD 3.0 Flash Expansion Socket, M.2 Socket: PCIe 3.0, USB2.0, SIM Socket.
- Other expansions: Mini-PCIe Socket: USB2.0, I2C, U.2 Extension Socket: SATA or PCIe 2.0, SATA, Gigabit Ethernet.
- USB: Three USB3.0 ports
- GPIOs: One RS485 and two TTLDigital I/O, SPDIF, I2C, DMIC
- Wireless Technology: WiFi 6 802.11ax, Bluetooth 5.0, Support 4G/5G module
- Power: 12V DC / SATA power socket, Type-C PD3.0 Power input（max 3A @ 20V)
- Clock: Real-Time Clock with Battery Backup
- Operating temperature: 0 to +80°C
